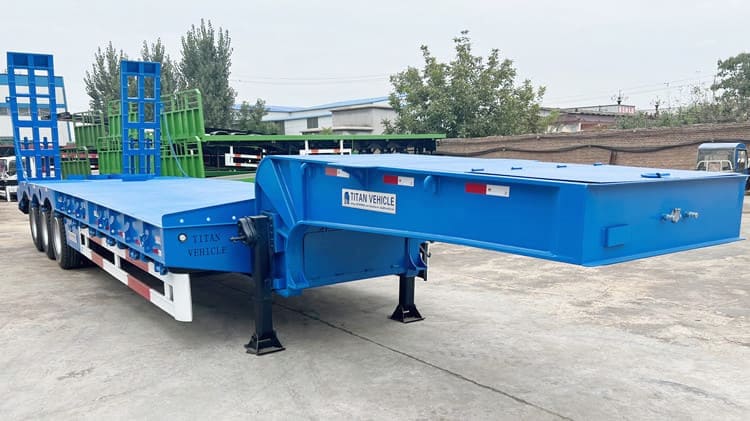

3 Axle Lowbed Semi Trailer

Lowbed Semi Trailer Description

TITAN 3 axle lowbed trailer in Suriname Paramaribo uses an advanced accessory system, with strong carrying capacity, high safety and wide application range.

TITAN 3 axle lowbed trailer in Suriname Paramaribo low platform can transport 80 tons of heavy cargo, with a low load-bearing platform and higher safety.

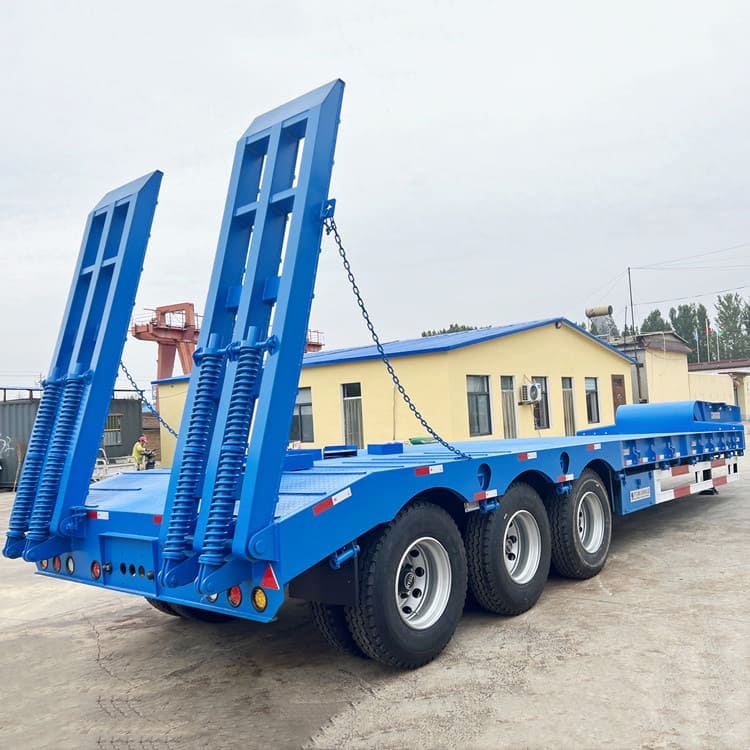

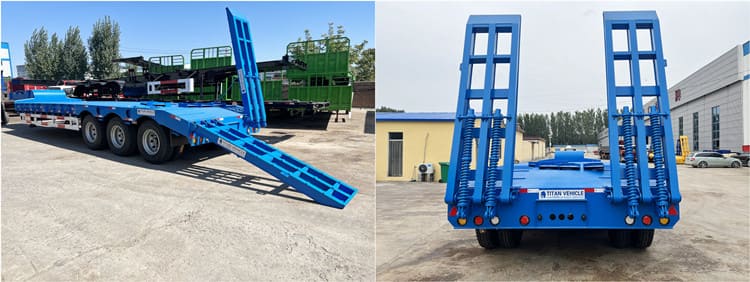

TITAN 3 axle lowbed trailer in Suriname Paramaribo loading ramp adopts a highly elastic double spring ladder made of H60 high-strength steel

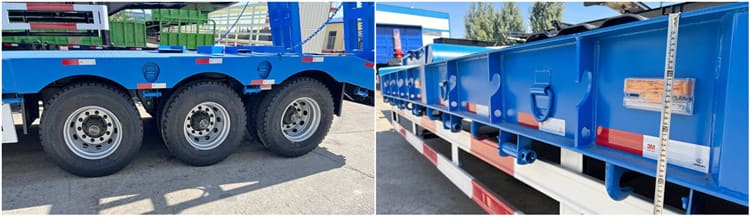

The 3 axle lowbed trailer in Suriname Paramaribo side beams are made of “H”-shaped steel with a height of 300mm and made of T700.

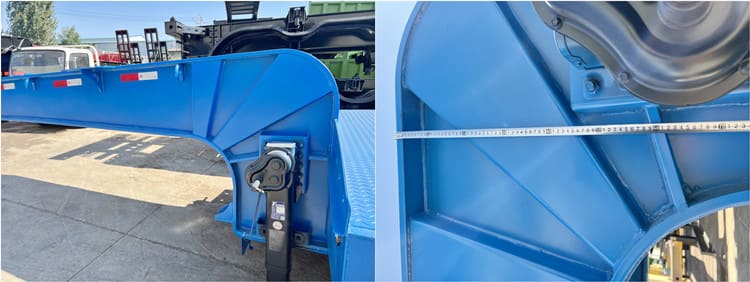

The 3 axle lowbed trailer in Suriname Paramaribo gooseneck is reinforced internally and externally, and the three-layer vertical plate is thickened.

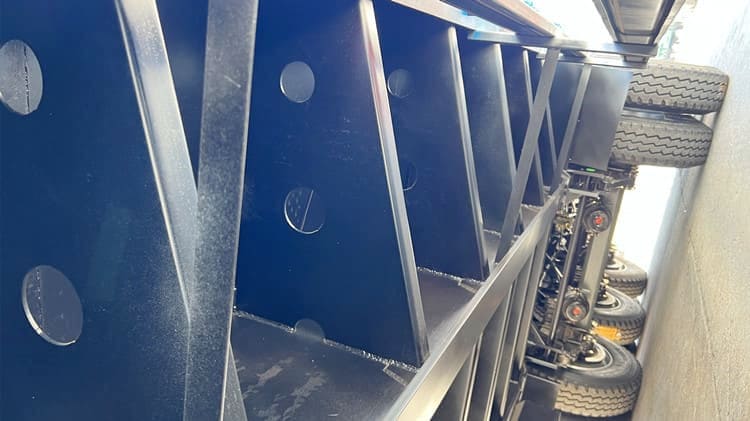

The 3 axle lowbed semi trailer side support thickness is 6mm, and the side support distance does not exceed 500mm. The main beam and side beams are firmly connected to improve the load-bearing capacity of the vehicle.

Specification of Lowbed Semi Trailer

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 80T

Axle: 13T, TITAN Brand

Suspension: Mechanical suspension

Kingpin: JOST brand

Landing gear: JOST

Ramp: Spring ramp

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

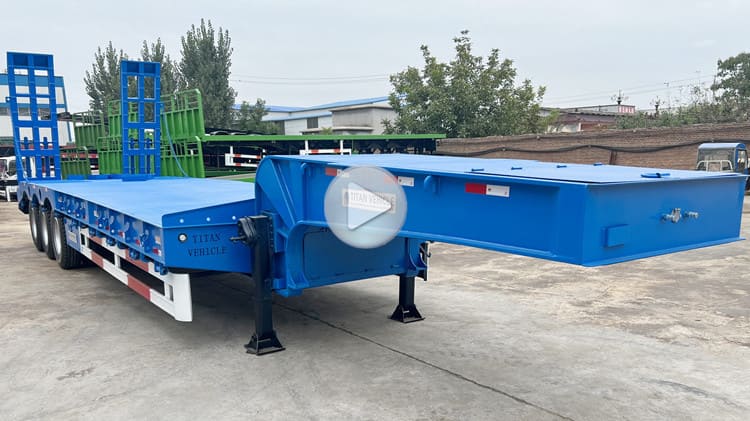

Video of Lowbed Semi Trailer
